VATECH EZ RAY AIR
VATECH EZ RAY AIR
SKU:AAP00092
Regular price
Call for price
Regular price
Sale price
Unit price
per
Call for price
Couldn't load pickup availability

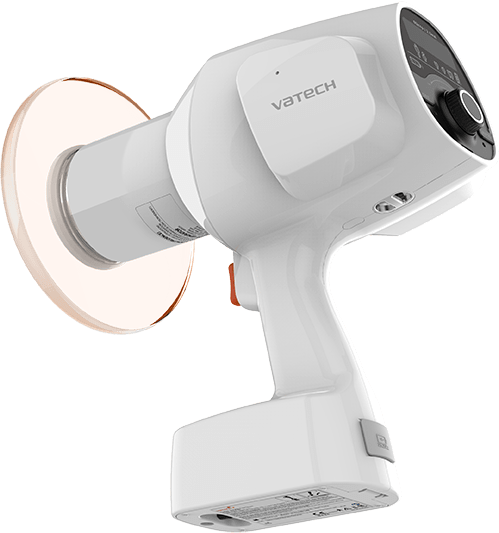

EzRay Air Portable
The EzRay Air Portable is a lightweight portable x-ray device that is designed for easy handling and stable positioning, delivering optimal image quality for your intra-oral x-ray images.
Features:
- Double scatter shield design for operator safety.
- The internal radiation shielding is perfectly designed to protect the operator from radiation leakage.
- Exposure to radiation results from the beam interacting with the surface of the patient, causing radiation to bounce o as radiation scatters in different directions. The backscatter shield significantly reduces the amount of radiation.
- The EzRay Air Portable's unique carbon-nano technology, which are not available in traditional x-ray generation methods, means there is a 75% reduction in cool-down time between shots, when compared to leading competitor's devices. This allows users to spend less time waiting for their x-ray to be ready and more time diagnosing and treating the patient.
- With no initial start-up delay for conventional x-ray sources to warm up, the EzRay Air Portable's Carbon Nano Technology optimizes workflow by allowing for quicker exposure after you initially turn on the device.
SPECIFICATION
EzRay Air P: VEX-P300
| FOCAL SPOT | TUBE VOLTAGE (kV) | TUBE CURRENT (mA) | EXPOSURE TIME RANGE | TOTAL FILTRATION | SOURCE TO SKIN DISTANCE | X-RAY FIELD | MAXIMUM DUTY CYCLE | POWER INPUT | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| 0.4 mm (IEC 60336) | 65 kV | 2.5 mA | 0.05 ~ 1.0 sec | Min. 1.5mm AI | 200 mm | Default: 60mm Round, 30x40 mm Rectangular Optional: 20x30 mm Rectangular | 1:60 | 21.6 V | 4.7 lbs. (2.1 kg) |
* The specifications are subject to change without prior notice.
DIMENSION
| TOP VIEW | SIDE VIEW | BACK VIEW |
|---|---|---|
|
|
|
