BRAVO G4
BRAVO G4
SKU:BRAVOG4-17

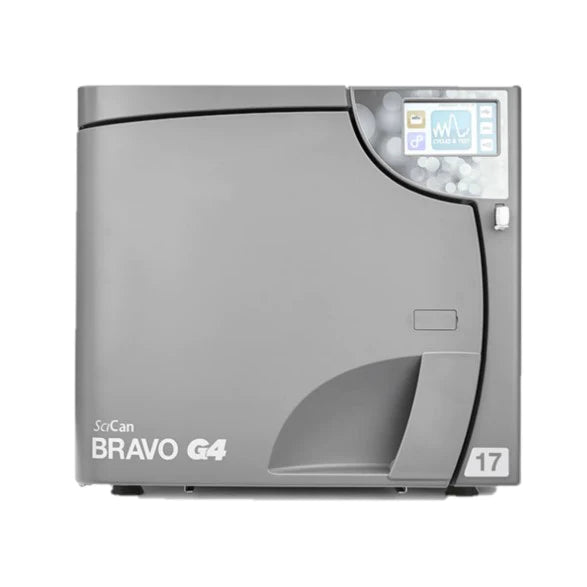

BRAVO G4 Chamber Autoclave
The BRAVO G4 Chamber Autoclave is a Class B sterilizer designed to address a dental office’s need for speed, capacity, safety, and efficiency. Its cutting-edge sterilization technology incorporates both pre-sterilization vacuum to improve steam penetration and post-sterilization vacuum to improve drying.
Features:
- The BRAVO G4 chamber autoclaves offer efficient cycle times, sterilizing and drying instruments in as little as 42 minutes.
- The delayed start feature allows the user to program cycles to begin at a later time; an effective feature when programming test cycles to begin before the start of the day.
- Offering enough capacity to meet the needs of any size practice, the BRAVO G4 is available in 17L and 22L chamber sizes.
- The BRAVO G4 offers numerous filling and draining options, including manual top and front filling, and automatic filling and draining through ports at the back.
- The water filling accessories equipment and the BRAVO G4 footprint allows options for any Steri-Center set-up.
The BRAVO fractionated vacuum chamber autoclave continues the SciCan tradition of being at the forefront of innovation and technology. BRAVO is true to the STATIM reputation for speed, providing rapid cycles for all types of instrument loads. BRAVO is a class B fractionated vacuum sterilizer that incorporates both pre-sterilization vacuum to improve steam penetration and post sterilization vacuum to improve drying.
BRAVO Sterilization Cycle Specifications:
120V | 17L | 22L | |||
Cycle | Temperature/Time | Cycle Time* | Max. Load | Cycle Time* | Max. Load |
---|---|---|---|---|---|
Solid Unwrapped | 270°F (132°C) / 4 mins | 33 mins | 6 kg (13.23 lbs) | 42 min | 7.5 kg (16.53 lbs) |
Solid Wrapped | 270°F (132°C) / 4 mins | 42 mins | 6 kg (13.23 lbs) | 52 min | 7.5 kg (16.53 lbs) |
Hollow Unwrapped | 270°F (132°C) / 4 mins | 50 mins | 6 kg (13.23 lbs) | 63 min | 7.5 kg (16.53 lbs) |
Hollow Wrapped | 270°F (132°C) / 4 mins | 59 mins | 6 kg (13.23 lbs) | 73 min | 7.5 kg (16.53 lbs) |
Rubber & Plastic | 250°F (121°C) / 20 mins | 75 mins | 6 kg (13.23 lbs) | 89 min | 7.5 kg (16.53 lbs) |
