MAXRAY COCOON HANDHELD
MAXRAY COCOON HANDHELD
SKU:BX-7017
Couldn't load pickup availability

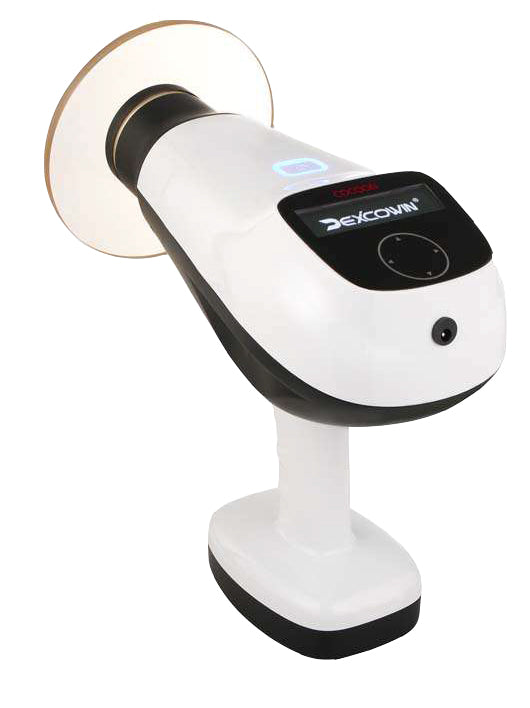

The MaxRay Cocoon is a state-of-the-art, hand-held X-ray device that was designed for speedy and efficient imaging within dental settings. This hand-held X-ray was made for easy operation and can do a full-mouth series in just a couple of minutes. It intuitively guides the user through every step and includes an intelligent display and voice prompts, while the lithium-ion battery boasts extended life with over 500 shots per charge. The MaxRay Cocoon provides high-resolution images at 0.4mm as small as 70kV, thus providing sharp, clear images at the lowest patient dose possible. The accessory bundle includes a complete package: batteries, charger, cradle, neck strap, power adapter, and protecting case.
Features and Benefits
- Twice as fast as conventional systems
- Easy display with voice prompts
- Over 500 shots per battery charge
- 0.4mm focal point for sharp images
- Includes all necessary accessories
- Lightweight and handheld
- Saves about 120 work hours annually
- Lightweight design, less than 5 lbs
- ZERO leakage design makes MaxRay Cocoon safe
- Can take hundreds of X-rays with a single charge
| Technical Specifications | |
|---|---|
| Available Colors | White |
| Item Classification | 2, Code: A11080.02 (in Korea) |
| Grade | Class Ⅱb (MDD 93/42/EEC as amended by 2007/47/EC) |
| Classification | B Type applied part |
| Tube Voltage | 70kV (fixed) |
| Tube Current | 1.7mA (fixed) |
| X-Ray Tube Focal Size | 0.4mm |
| Cooling System | Oil cooling |
| Total Filtration | 2.3 mm Al |
| Inherent Filtration | 0.8mm, fixed added filter: 0.7 mm Aluminum |
| Target Angle | 19 ~ 20° |
| Time Set-up Function | 0.05 ~ 1.35 sec (Film/Digital included) |
| Distance to Target | >20cm |
| X-ray Field | 50 mm (round-style) |
| Size of Main Body | 139(W) x 163.5(H) x 66.5mm(D) |
| Weight of Body | 4.8lbs |
| Details | Package Contains | MFG Model# |
|---|---|---|
| COCOON HANDHELD | 1 Unit | BX-7017 |
