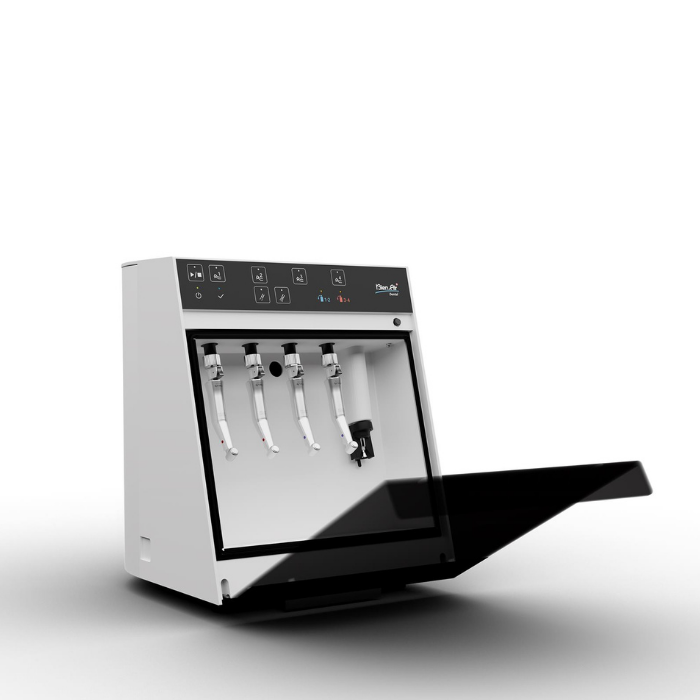

Lubricate 2 Handpiece Maintenance System
Lubricate 2 Handpiece Maintenance System
SKU:1601156-001
Couldn't load pickup availability
Lubricare 2 ensures automatic maintenance (cleaning and lubrication) of dental handpieces, which are essential for daily practice. Thanks to the different pre-programmed operating modes for each specific handpiece, Lubricare 2 can automatically maintain up to four handpieces in a short time. Lubricare 2 effectively removes excess oil, allowing maintenance in a short time. It cleans a turbine in approximately 20 seconds and a contra-angle handpiece in 40 seconds. Lubricare 2 is compatible with handpieces and cleaning or lubrication products from other manufacturers. Additional accessories or different spray holders may be required.
Technical Data
- Cycle duration – 20 seconds turbine, 40 seconds’ contra-angle.
- Capacity – 4 ways (2 cleaning, 2 lubricating) and 1 chuck lane
- Rating – AC 100 V to 240 V, 50/60 Hz
- Power consumption – 10 VA to 25 VA
- Air flow rate – 60 NL/min to 100 NL/min (0.3 MPa to 0.5 MPa)
- Air pressure – 0.3 MPa to 0.5 MPa (recommended 0.4 MPa)
- Outer dimensions (WxDxH) – 300 x 300 x 365 mm
- Warranty – 1 year
Includes
- 1 x Duo pack maintenance (Spraynet & Lubrifluid)
- Free training on the Reprocessing of Dental Handpieces
PARTS & ACCESSORIES
Lubrifluid
REF 1600064-001
Spraynet
REF 1600036-001
Absorbent door strips (5 pcs.)
REF 1308446-005
Absorbent sheets for oil Lubricare 2 (5 pcs.)
REF 1308452-005
Absorbent filters for oil Lubricare 1 and 2 (5 units)
REF 1306003-005
Lubricare 2 handpiece coupling
REF 1308451-001
