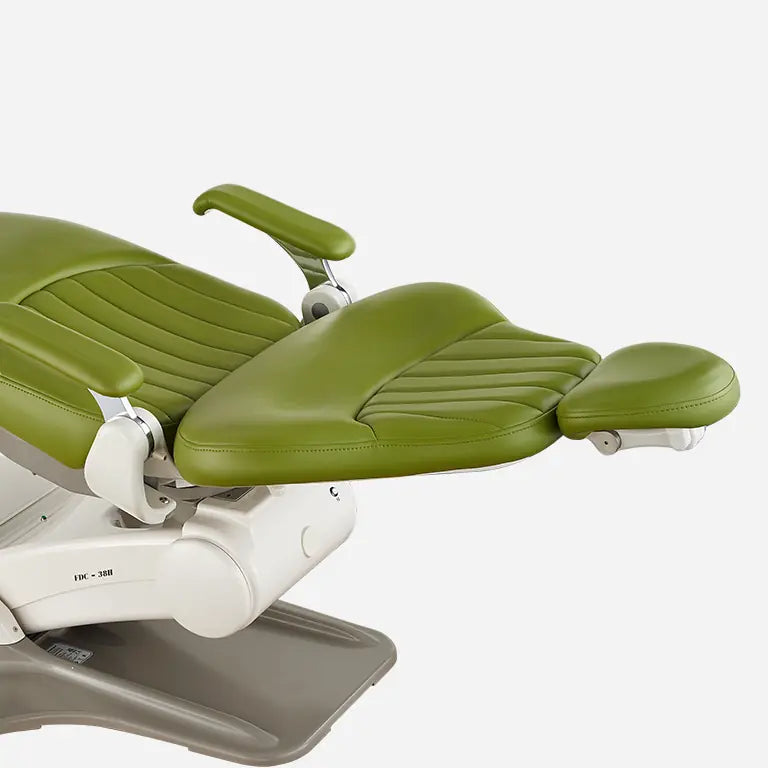

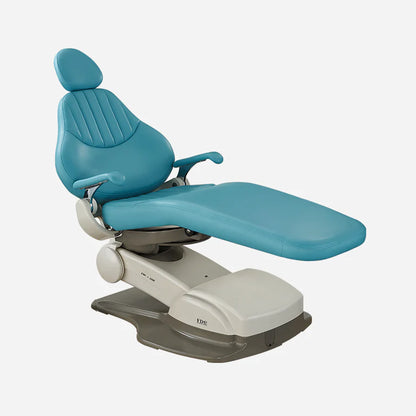

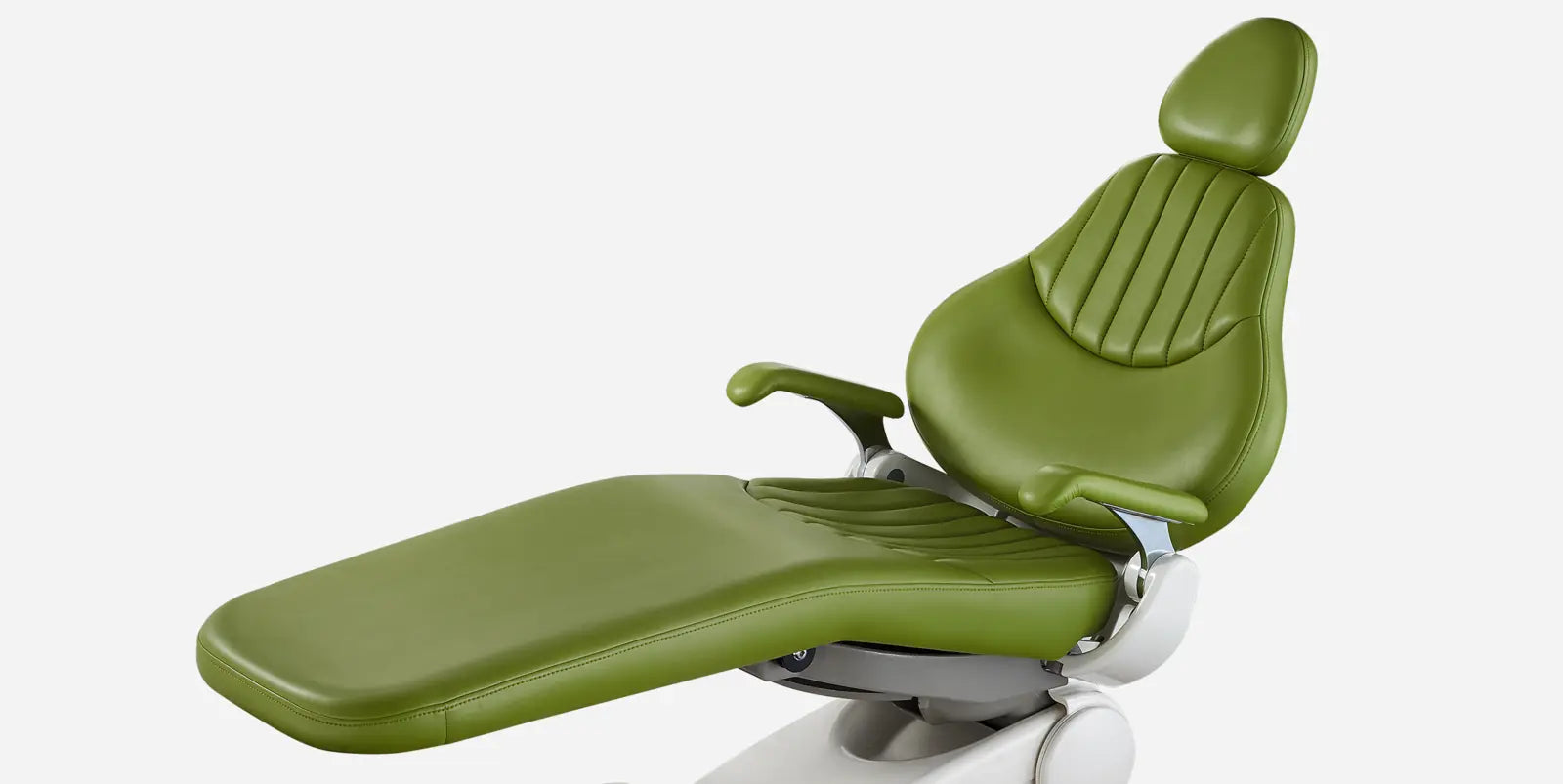

Firstar FDC38 Dental Chair

The Firstar FDC38 Dental Chair is a full-hydraulic patient chair designed around straightforward operation, durable metal construction, and flexible clinical positioning. Its synchronized back-and-seat movement, programmable memory, articulating headrest, and swing-down armrests provide the core functionality needed for everyday general and specialty dentistry.

The FDC38 is positioned as Firstar’s practical, versatile chair platform. It combines a quiet hydraulic drive with a low 17-inch seat height, 13 inches of vertical lift, and a 50-degree swivel range, helping the dental team position patients while adapting the chair to different clinicians and procedures.

Full-Hydraulic Positioning

The FDC38 uses a dual-hydraulic drive system to control chair lift and backrest recline. Its synchronized support motion coordinates the seat and back as the patient is reclined, helping maintain support throughout the transition from upright consultation to treatment position.

Four programmable memory positions allow commonly used chair settings to be stored and recalled. This can reduce repetitive manual adjustments and help the clinical team establish consistent examination, treatment, and patient-exit positions.

• Quiet, smooth full-hydraulic drive system
• Synchronized back-and-seat support movement
• Four programmable chair-memory positions
• 17-inch minimum seat height
• 30-inch maximum seat height
• 13-inch vertical lift range
• 50-degree chair swivel

Clinical Access and Head Positioning

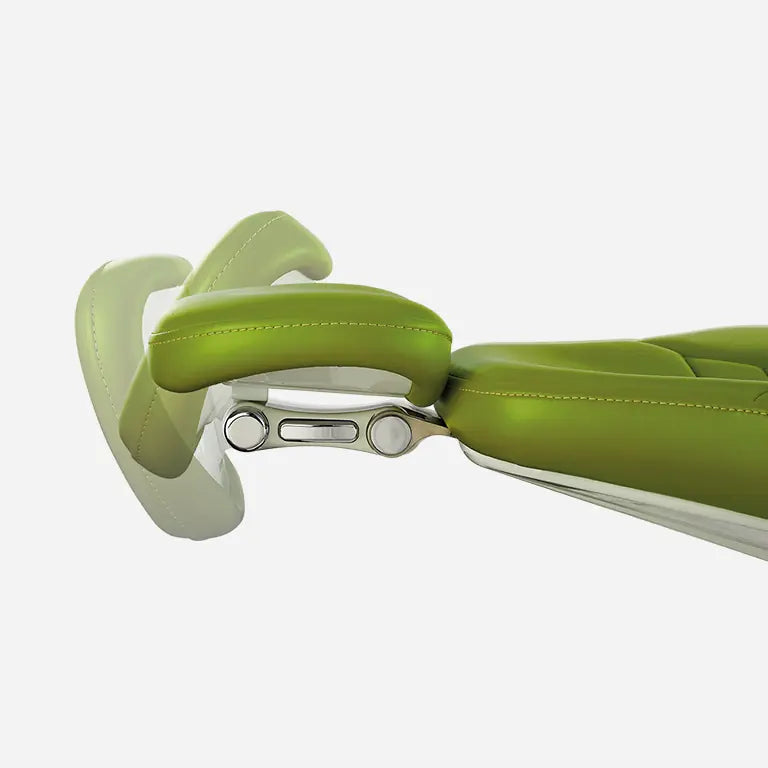

A dual-articulating, height-adjustable headrest lets the clinician change the height and angle of the patient’s head independently of the main backrest. This provides additional control when positioning patients for access to the maxillary or mandibular arch and helps accommodate different patient heights.

The chair’s back support is made from die-cast aluminum, providing a rigid support structure while preserving working space around the patient. Swing-down armrests move out of the operator’s path and create a more open approach for patient entry and exit.

• Dual-articulating headrest
• Height-adjustable headrest assembly
• Die-cast aluminum back support
• Locking swing-down armrests
• Right- and left-side clinical access

Patient Entry, Support, and Safety

The FDC38 lowers to a 17-inch seat height, creating a relatively approachable seating position for a wide range of patients. Locking armrests provide support while seated and swing downward when additional entry space is needed.

A collision-detection safety switch is designed to stop chair movement when the chair encounters an obstruction. The chair should still be operated only after the team confirms that the area beneath and around the chair is clear.

• Low 17-inch entry height
• Locking armrests for seated support
• Swing-down armrests for patient access
• Collision-detection safety switch
• Current published maximum patient weight of 325 pounds when configured with a delivery system

Metal Construction and Hydraulic Capacity

Firstar uses metal structural components throughout the chair’s load-bearing assembly. The base and back support are die-cast aluminum, while the main chair frame is cast iron. This provides a stable foundation for the hydraulic lift, recline mechanism, and any compatible chair-mounted equipment.

• All-metal base and frame construction
• Die-cast aluminum base
• Cast-iron chair frame
• Die-cast aluminum back support
• Published maximum hydraulic lift capacity of 500 pounds

Upholstery Options

The FDC38 includes durable Naugasoft upholstery as its standard configuration. Ultraleather upholstery is available as an upgrade for practices that want a softer surface and additional premium color choices.

• Naugasoft upholstery standard
• Ultraleather upholstery optional
• Multiple upholstery colors available
• Matching Firstar doctor and assistant stools available separately

Technical Overview

• Model: FDC38
• Manufacturer item number: 11000
• Drive system: Dual hydraulic
• Lift direction: Single-direction hydraulic lift
• Recline: Bidirectional hydraulic recline
• Programmable positions: Four
• Minimum seat height: 17 inches
• Maximum seat height: 30 inches
• Seat-height range: 13 inches
• Chair swivel: 50 degrees
• Maximum hydraulic lift capacity: 500 pounds
• Maximum patient weight: 325 pounds with delivery system, according to the current manufacturer page
• Base: Die-cast aluminum
• Frame: Cast iron
• Back support: Die-cast aluminum
• Standard upholstery: Naugasoft

Is the Firstar FDC38 Right for Your Practice?

The FDC38 is well suited to practices looking for a durable hydraulic chair with the essential positioning and access features needed in a busy general operatory. It offers programmable movement, all-metal construction, flexible upholstery choices, and compatibility with Firstar operatory equipment without adding the premium recline and upholstery features of the FDC50.

Patient capacity can vary based on the attached delivery configuration. Contact Supply Doc to confirm upholstery, compatible delivery and lighting equipment, floor requirements, freight, installation, and the final chair configuration before ordering.
