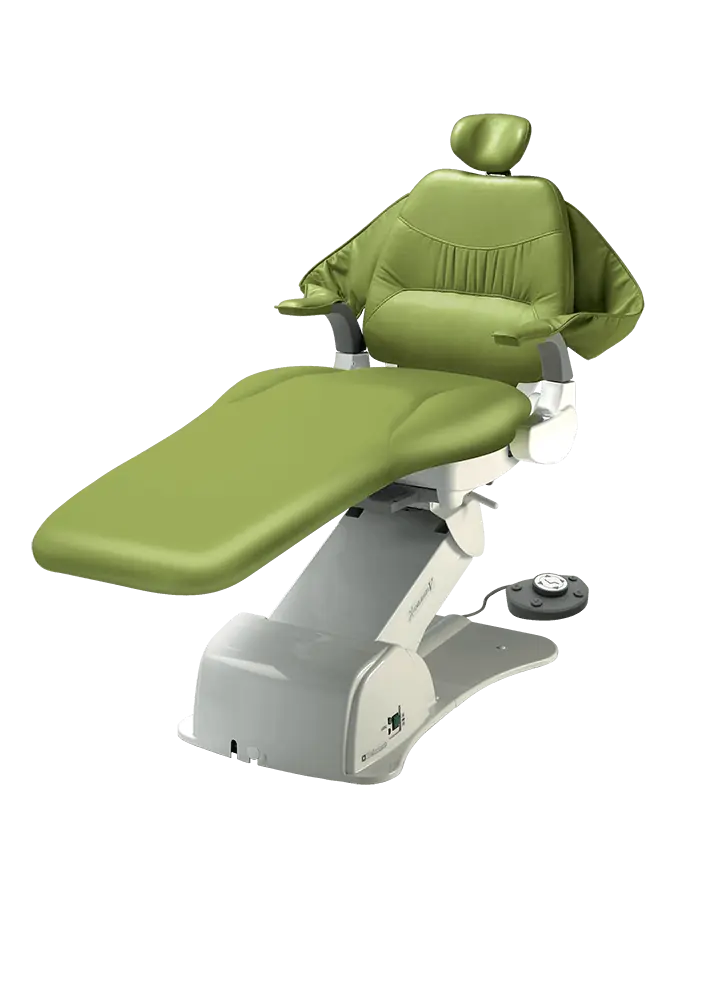

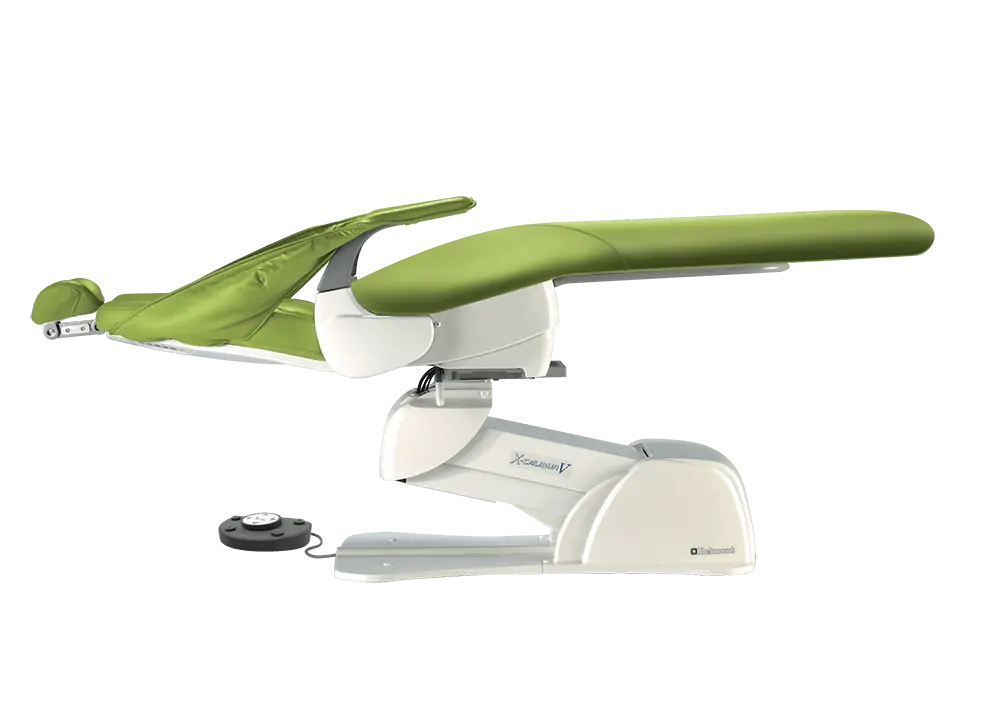

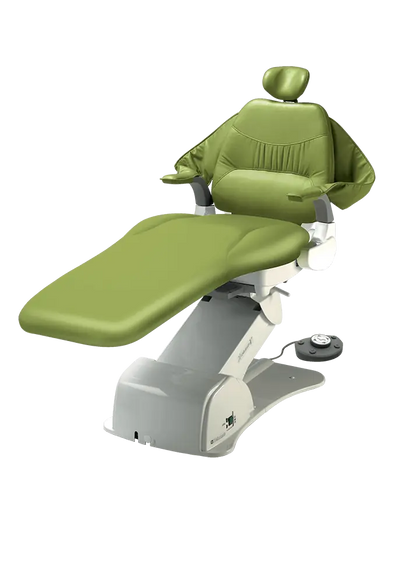

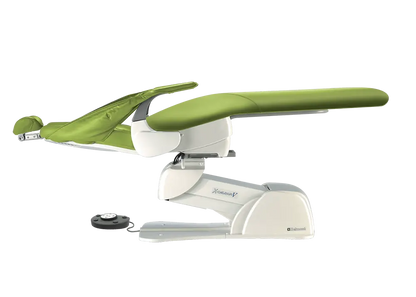

Belmont X-Calibur V B50N Dental Chair

The Belmont X-Calibur V B50N Dental Chair combines proven electro-hydraulic performance with the positioning, accessibility, and configuration options needed for a modern dental operatory. Designed as a dependable foundation for everyday dentistry, the B50N supports comfortable patient positioning while helping doctors and assistants maintain close access to the oral cavity.

Its slim, narrow backrest allows the dental team to work closer to the patient with less reaching and interference. A dual-articulating headrest provides additional control over head and neck positioning, helping clinicians establish a clear working angle for both the maxillary and mandibular arches. This combination supports better visibility, more natural working posture, and efficient positioning across a broad range of general and specialty procedures.

Efficient Patient Positioning

The X-Calibur V uses Belmont’s electro-hydraulic system to deliver smooth, controlled chair movement. Built-in membrane controls are accessible from both the doctor and assistant sides of the backrest, allowing either team member to adjust the chair without interrupting the procedure.

A standard foot control provides hands-free access to manual positioning, two programmable presets, last-position recall, and automatic return. These controls make it easier to establish frequently used treatment positions, return the patient upright, and move efficiently between consultation and treatment.

• Smooth electro-hydraulic chair movement
• Manual seat and backrest positioning
• Two programmable treatment positions
• Last-position recall
• Automatic return function
• Integrated controls accessible from both sides of the chair
• Standard hands-free foot control

Clinical Access and Ergonomics

The B50N’s narrow backrest is designed to reduce interference between the chair and the dental team. Doctors and assistants can position themselves closer to the patient, helping reduce excessive leaning and reaching during treatment.

The dual-axis headrest tilts forward and backward to support a wide range of patient anatomies and treatment positions. By repositioning the patient’s head independently of the backrest, the headrest can improve access to the upper or lower arch without requiring unnecessary chair movement.

• Thin, narrow backrest for close operator positioning
• Dual-articulating headrest for upper- and lower-arch access
• Seat height adjustment from approximately 13⅜ to 28⅜ inches
• 60-degree total seat rotation: 30 degrees left or right of center
• Locking seat swivel for controlled patient orientation

Patient Entry, Comfort, and Safety

Swing-away armrests rotate outward to create a more open path for patient entry and exit. This can be particularly useful when assisting older patients, children, or individuals with limited mobility.

A safety shutoff plate beneath the chair helps stop movement if the chair encounters an obstruction while lowering. The B50N is also available with removable upholstery slings, which can be taken off for easier cleaning, replacement, or closer access to smaller patients.

• Swing-away armrests for easier patient entry and dismissal
• Safety shutoff plate beneath the chair
• Contoured upholstery designed for patient support
• Optional removable slings for cleaning and specialized access

Upholstery and Configuration Options

The X-Calibur V B50N can be configured with standard or plush upholstery and with or without removable slings. This allows practices to balance cushioning, clinical access, maintenance preferences, and operatory appearance.

• Standard upholstery with removable slings
• Standard upholstery without slings
• Plush upholstery with removable slings
• Plush upholstery without slings
• Available in a range of Belmont upholstery colors
• Compatible with optional Belmont delivery-system configurations

Technical Overview

• Model: B50N
• Lift system: Electro-hydraulic cantilever mechanism
• Minimum seat height: Approximately 13⅜ inches
• Maximum seat height: Approximately 28⅜ inches
• Seat rotation: 60 degrees total
• Headrest: Dual-articulating design
• Controls: Built-in membrane switches and standard foot control
• Safety feature: Under-chair shutoff plate
• Upholstery: Standard or plush, with or without removable slings

Is the X-Calibur V B50N Right for Your Practice?

The B50N is a strong fit for practices looking for a dependable, configurable patient chair without stepping into Belmont’s most premium control package. Its low positioning range, narrow backrest, dual-articulating headrest, and hands-free controls make it well suited for general dentistry, pediatric care, operatory upgrades, and multi-room equipment projects.

Chair configurations, upholstery selections, delivery-system compatibility, installation requirements, and final pricing may vary. Contact Supply Doc for help selecting a configuration that fits your operatory, clinical workflow, and equipment plan.
