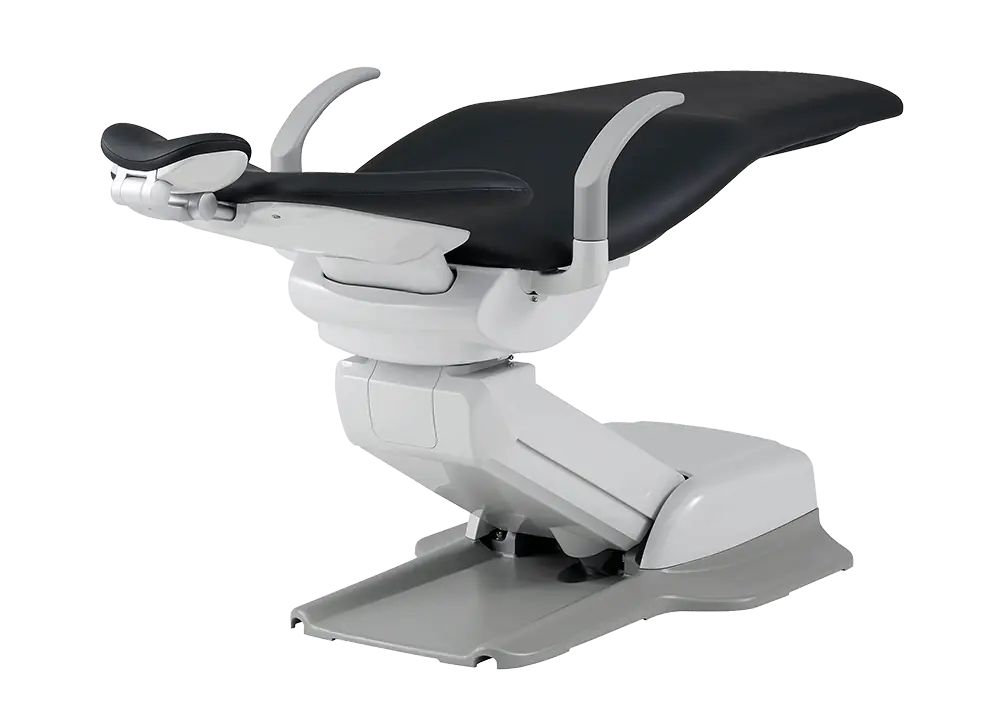

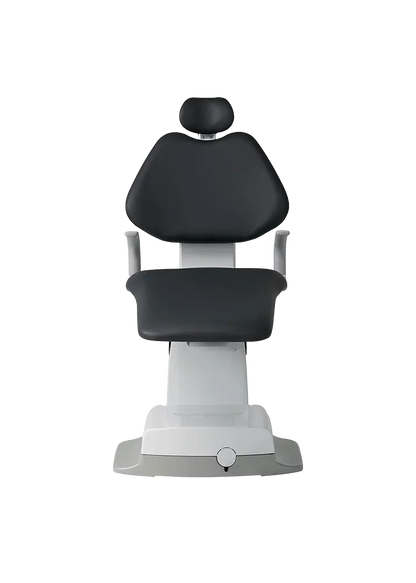

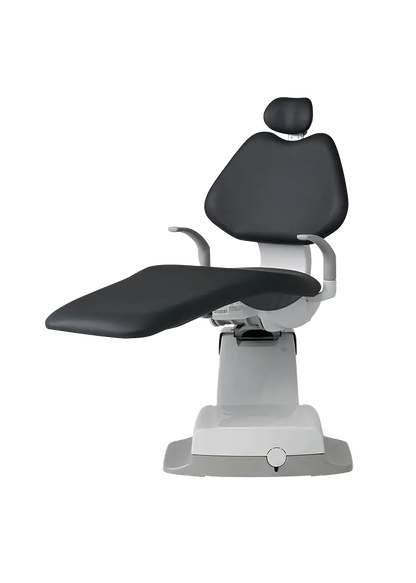

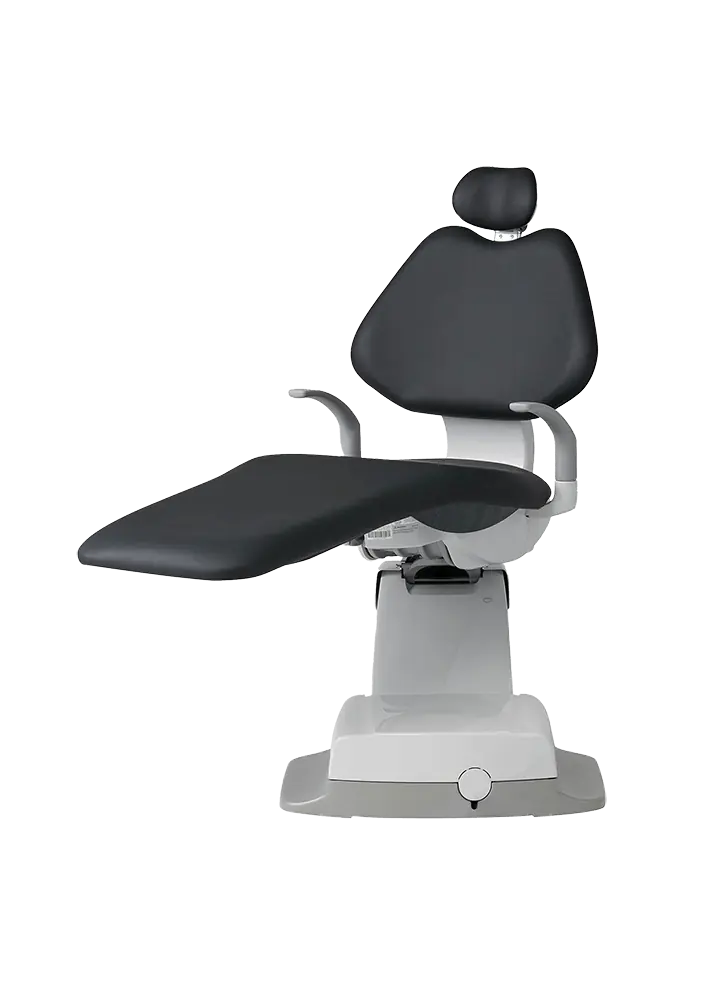

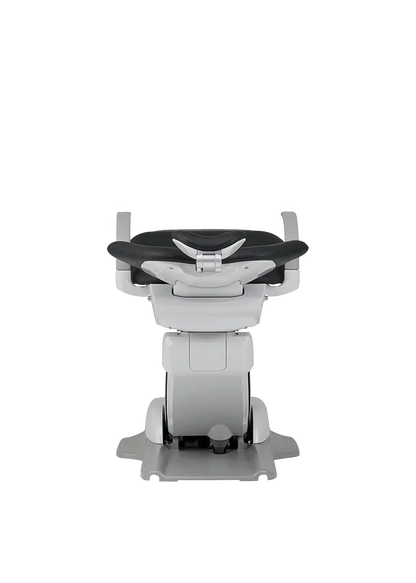

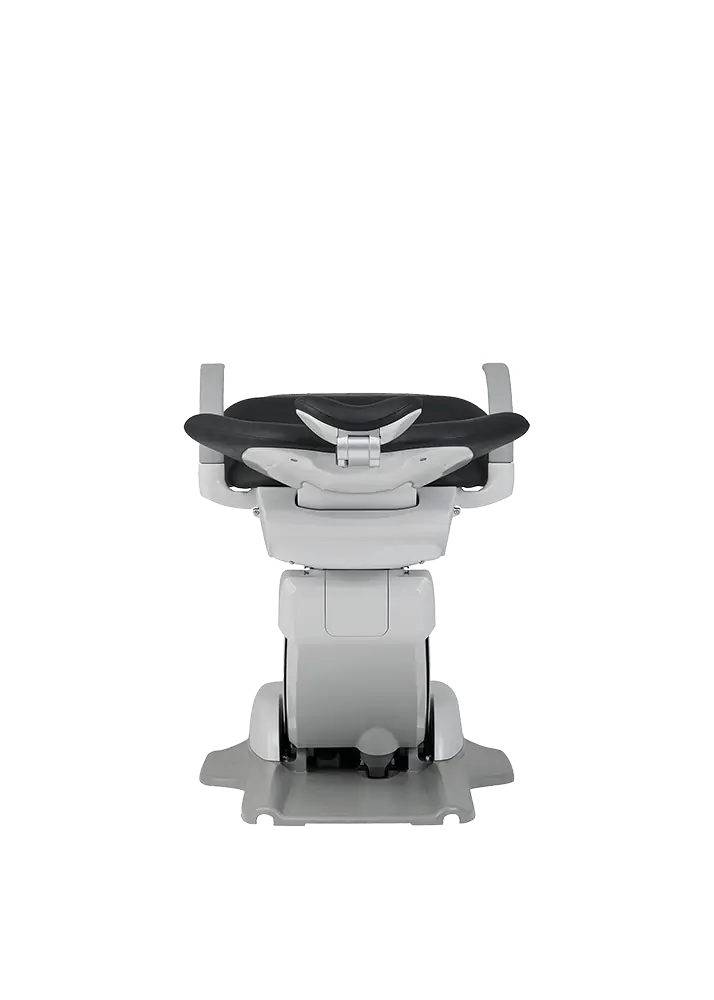

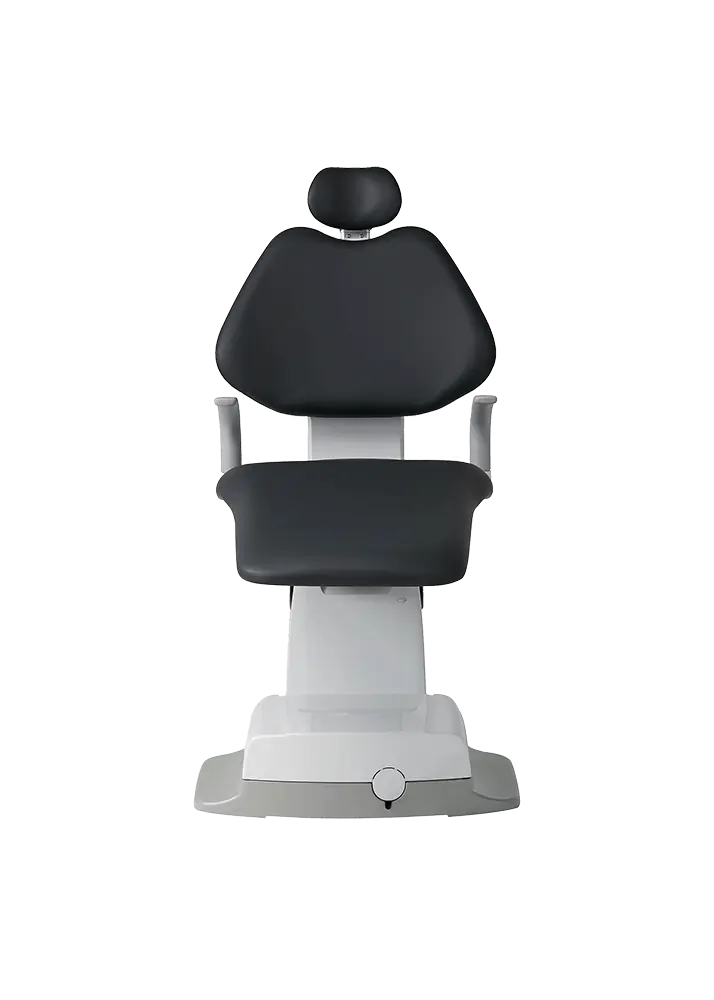

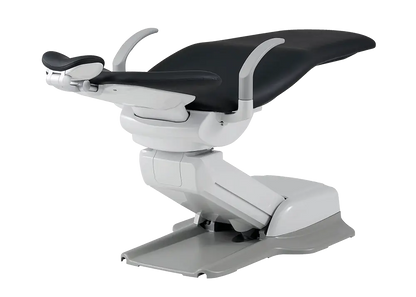

Belmont EVOGUE Q3300

The Belmont EVOGUE Q3300 Dental Chair is designed to support efficient patient positioning, comfortable treatment, and close clinical access throughout the workday. Its slim backrest, synchronized reclining mechanism, adjustable headrest, and hydraulic construction give dental teams a versatile platform for general and specialty procedures.

The Q3300 emphasizes straightforward operation and dependable mechanical performance. Its streamlined design helps reduce interference around the patient, while carefully positioned controls allow the dental team to adjust chair orientation without disrupting the clinical workflow.

Smooth, Synchronized Positioning

The EVOGUE Q3300 uses a fully electro-hydraulic lift system with synchronized reclining. As the chair moves from an upright position into treatment position, the coordinated seat and backrest movement helps support the patient throughout the transition.

The chair rotates 30 degrees to either side of center, allowing the dental team to adjust patient orientation for operator access, assistant positioning, room layout, or nearby imaging equipment. An electronic swivel lock is integrated into the backrest for convenient release and secure positioning.

• Fully electro-hydraulic positioning system
• Synchronized seat and backrest movement
• 60-degree total seat rotation: 30 degrees left or right of center
• Electronic seat-swivel lock
• Backrest-mounted rotation control
• Safety stop activated by the rear cantilever cover plate or a control switch

Close Operator Access

A slim, contoured backrest helps doctors and assistants position themselves closer to the patient’s oral cavity. This reduced working distance can improve visibility and instrument access while supporting a more neutral working posture.

The chair’s dual-articulating headrest moves forward and backward to help position the patient for access to the maxillary and mandibular arches. Its push-button release mechanism makes it easier to adjust head and neck support for different patient anatomies and clinical procedures.

• Slim backrest for close doctor and assistant positioning
• Dual-articulating headrest
• Push-button headrest adjustment and extension
• Positioning designed to improve access to both dental arches
• Streamlined profile with fewer obstructions around the treatment area

Patient Comfort and Accessibility

The Q3300 combines supportive cushioning with outward-rotating armrests that help create a wider entry and exit path. Each armrest can rotate outward up to 130 degrees, making it easier for patients to approach the chair and for team members to provide assistance when needed.

Four upholstery configurations allow the practice to choose between a streamlined seamless surface, additional plush cushioning, and optional removable slings. Removable slings can simplify cleaning and replacement while providing closer access when treating smaller patients.

• Supportive, contoured patient seating
• Armrests rotate outward up to 130 degrees
• Multiple upholstery styles and color options
• Available with removable upholstery slings
• Designed to accommodate patients across a range of ages and mobility levels

Controls and Operatory Integration

The chair’s standard control configuration depends on how it is paired with the operatory equipment. Seat-positioning controls may be provided through a compatible EVOGUE delivery unit or an optional foot control. This gives practices flexibility when planning a complete Belmont treatment-room configuration.

The Q3300 supports both swing-mounted and side-mounted delivery-system configurations. Standard Belmont chair adapters may also allow compatible Belmont delivery equipment to be mounted when replacing or upgrading an existing chair, subject to model and installation verification.

• Seat-positioning controls available through a compatible EVOGUE unit
• Optional foot-control configuration
• Compatible with swing-mounted delivery systems
• Compatible with side-mounted delivery systems
• Cast-aluminum base for structural stability

Upholstery Options

• Standard seamless upholstery with slings
• Standard seamless upholstery without slings
• Plush upholstery with slings
• Plush upholstery without slings
• Available in a wide selection of Belmont upholstery colors

Technical Overview

• Model: Q3300
• Product line: EVOGUE
• Lift system: Electro-hydraulic compensating cantilever
• Power: AC 120V, 60 Hz, 4.2A
• Seat rotation: 60 degrees total
• Seat-swivel lock: Electronic, integrated into the backrest
• Headrest: Dual-articulating with push-button release
• Armrest rotation: Up to 130 degrees outward
• Base: Cast aluminum
• Mounting options: Swing-mounted or side-mounted delivery configurations
• Foot control: Optional, depending on configuration

Is the EVOGUE Q3300 Right for Your Practice?

The EVOGUE Q3300 is suited for practices that prioritize comfortable patient positioning, close operator access, and durable hydraulic operation. It provides a step up in refinement and integration while retaining relatively straightforward chair mechanics and controls.

It is especially worth considering when planning an EVOGUE treatment-room package, replacing an existing Belmont chair, or choosing a chair that can support different delivery-system mounting arrangements.

Controls, upholstery, delivery-system mounts, accessories, and installation requirements vary by configuration. Contact Supply Doc to verify compatibility and build a chair package around your operatory layout and preferred clinical workflow.
