Air Techniques ScanX Swift View 2.0 PSP Scanner System – G8900A

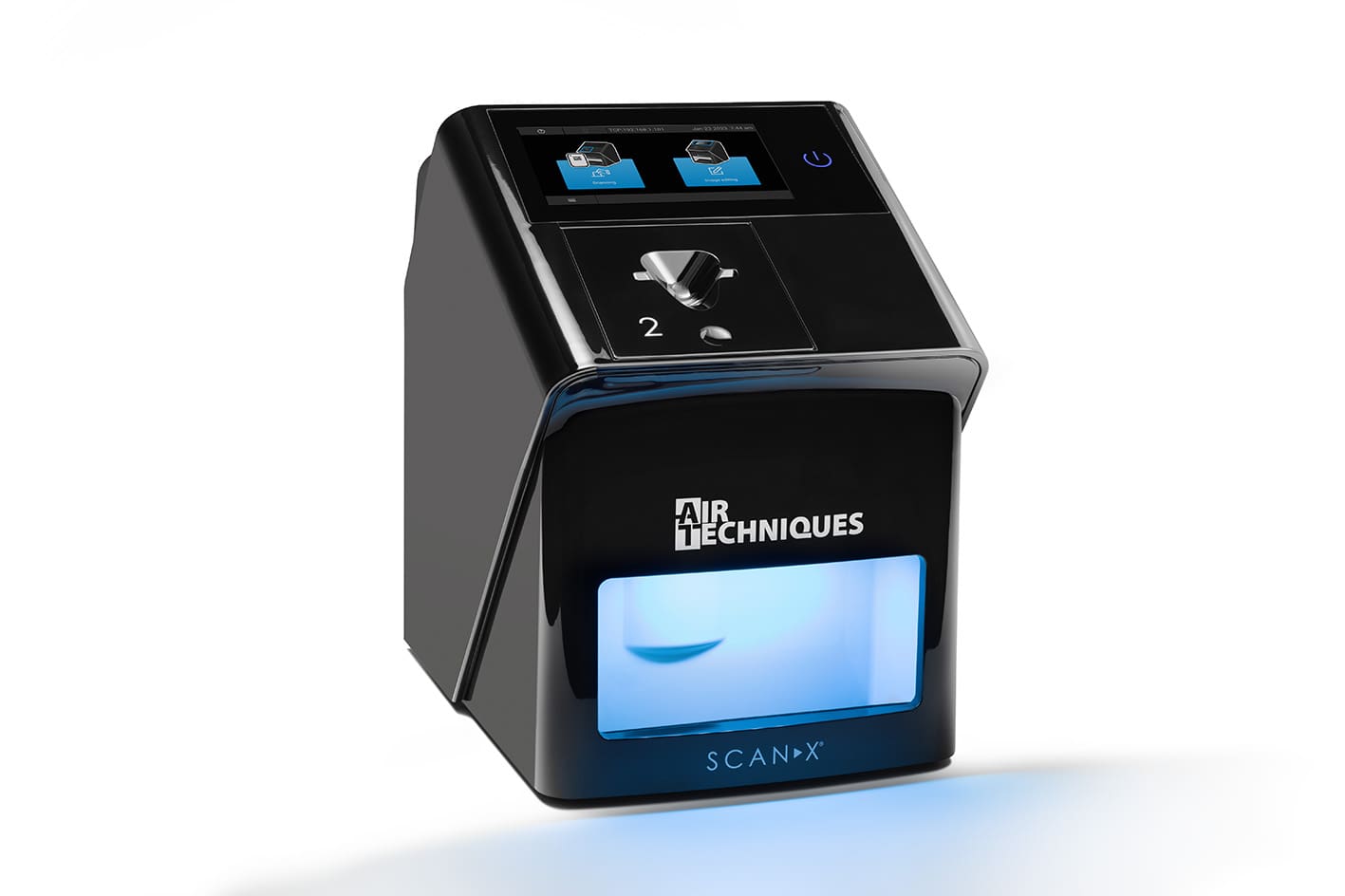

The Air Techniques ScanX Swift View 2.0 (G8900A) is a compact intraoral phosphor storage plate scanner designed for efficient digital dental radiography using ScanX IDX phosphor storage plates. Supporting all intraoral IDX plate sizes from 0 through 4, the system combines a 5-inch color touchscreen, Easy Feed plate handling, flexible network connectivity and advanced workflow features in a compact tabletop design.

Designed for use with ScanX IDX PSPs and VistaSoft imaging software, the ScanX Swift View 2.0 provides the flexibility of wireless phosphor storage plate imaging without the cable limitations of direct digital sensors. ScanManager allows scan jobs from multiple workstations to be selected directly at the scanner, while Standalone Mode allows images to be scanned and temporarily stored locally when a computer connection is unavailable. ScanX IDX PSPs provide a 100% active image area from edge to edge for maximum usable diagnostic area.

Features and Benefits

• Supports all intraoral IDX PSP sizes: Interchangeable plate guides accommodate ScanX IDX phosphor storage plates in sizes 0, 1, 2, 3 and 4.
• Easy Feed scanning: Allows IDX PSPs to be scanned quickly one after another for an efficient digital imaging workflow.
• 5-inch color touchscreen: High-resolution capacitive touchscreen provides intuitive operation directly at the scanner.
• Flexible network connectivity: Integrated LAN and dual-band Wi-Fi provide multiple options for connecting the scanner to the practice network.
• ScanManager workflow: Multiple scan jobs can be sent from different workstations and selected directly from the scanner display.
• Standalone Mode: Images can be scanned without an active computer connection and temporarily stored locally on the device's USB memory stick for later transfer.
• VistaSoft imaging software: The system includes a voucher for Air Techniques VistaSoft imaging software and also supports VistaSoft Connect.
• High-resolution imaging: Delivers up to 40 LP/mm theoretical resolution with 22 LP/mm effective resolution and 16-bit grayscale.
• 100% active image area: ScanX IDX PSPs provide an active image surface from edge to edge to maximize the available diagnostic area.

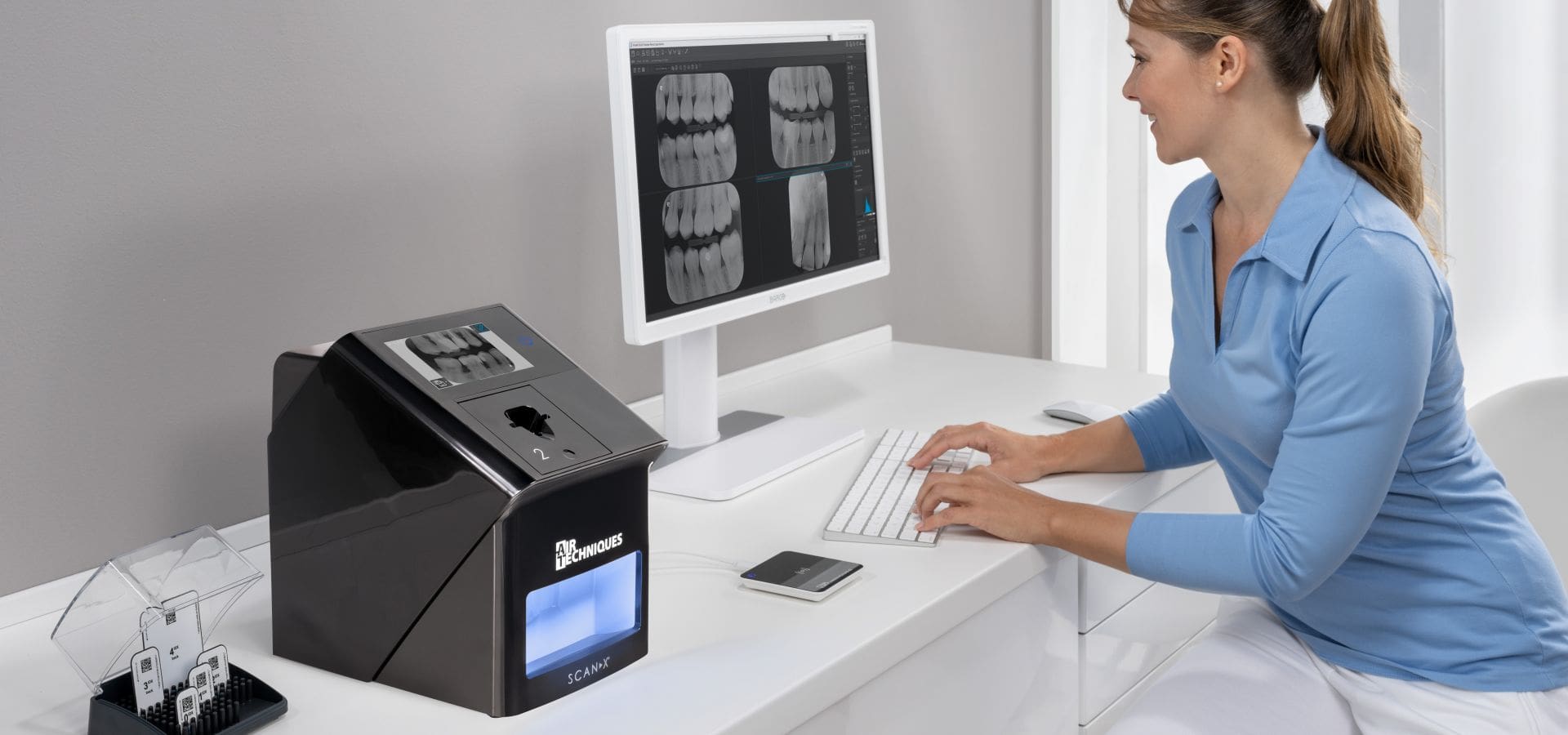

• Compact installation: The scanner can be installed as a tabletop unit or mounted to a wall using the optional wall bracket.

Specifications

Package Contents

• ScanX Swift View 2.0 basic unit
• Power supply
• 3-meter network cable
• Device-port cover
• VistaSoft imaging software voucher
• Plate guides for sizes S0, S1, S2, S3 and S4
• ScanX IDX phosphor storage plates in sizes S0 and S2
• Barrier envelopes in sizes S0 and S2
• Barrier films
• Plate-guide holder
• Phosphor storage plate cleaning wipes
• Dust cover
• WLAN stick — pre-installed depending on version
• USB memory stick — pre-installed depending on version
• Quick Start Instructions

Compatibility Notice: The ScanX Swift View 2.0 is designed for use with ScanX IDX phosphor storage plates and is not compatible with other PSP types.

Installation and Package Notice: Installation, connection and commissioning should be performed by qualified personnel. Package contents may vary due to country-specific requirements, import regulations and product version.
