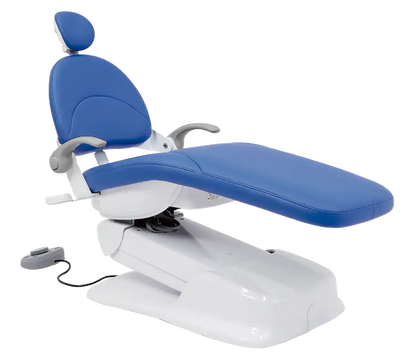

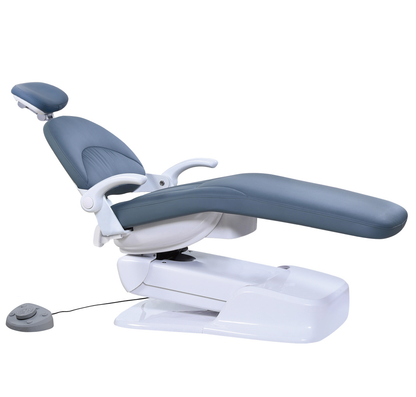

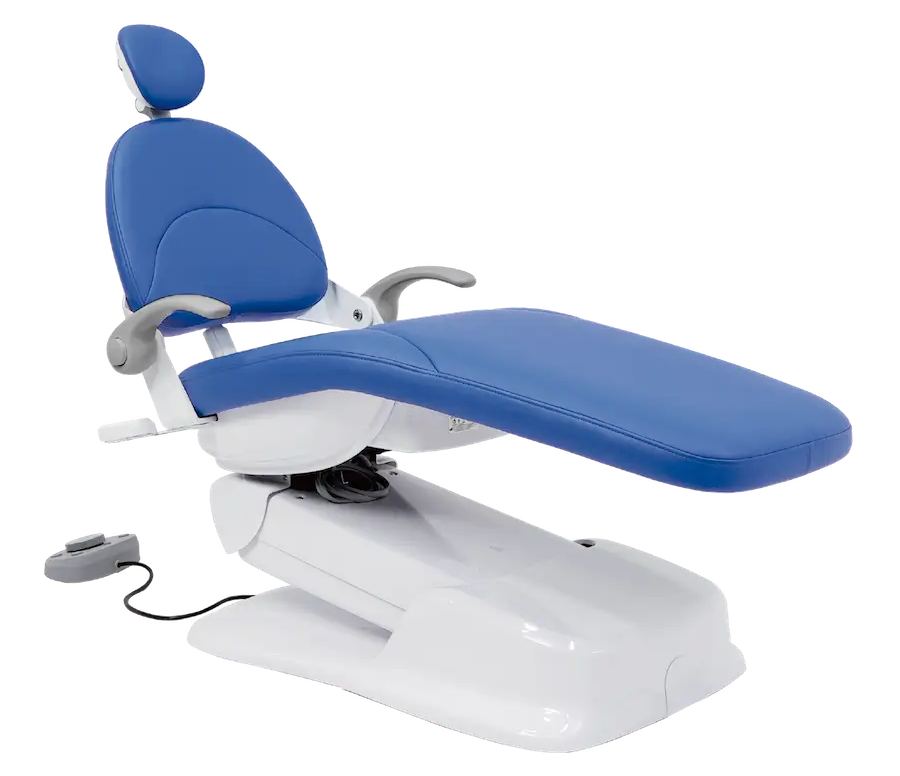

ADS AJ15 HYDRAULIC CHAIR

The ADS AJ15 Hydraulic Dental Chair is designed for practices that want dependable hydraulic positioning, close operator access, and a substantial patient capacity in a practical operatory chair. Its narrow butterfly-style backrest creates additional working space around the patient, helping doctors and assistants position themselves closer to the oral cavity during treatment.

A hydraulic lift system provides stable chair movement, while programmable positioning, an armrest-mounted touchpad, and a foot control give the clinical team multiple ways to adjust the chair. The AJ15 combines a cast-iron frame, steel backrest support, and steel base plate with supportive upholstered surfaces intended for everyday general and specialty use.

Hydraulic Positioning and Controls

The AJ15 includes three programmable chair positions that can be used to establish frequently needed treatment settings. The integrated touchpad is mounted on the armrest for convenient access, while the foot control allows the operator to make positioning adjustments without relying solely on hand controls.

• Hydraulic lift and positioning system
• Three programmable chair positions
• Touchpad mounted on the armrest
• Foot control for convenient hands-free operation
• 60-degree total seat rotation for operatory positioning
• Chair safety switch to help stop movement when an obstruction is encountered

Clinical Access and Visibility

The AJ15 uses a narrow, butterfly-shaped backrest to preserve support beneath the patient while reducing interference around the shoulders and upper back. This design gives doctors and assistants more room to approach from either side and can help reduce excessive leaning and reaching during procedures.

A double-articulating headrest allows the patient’s head to be positioned independently of the main backrest. Adjusting the headrest angle can improve visibility and access when working on the maxillary or mandibular arch and can help accommodate different patient anatomies.

• Narrow butterfly-style backrest for close operator access
• Double-articulating headrest
• Adjustable head and neck support
• Designed for access from either side of the patient

Patient Entry and Support

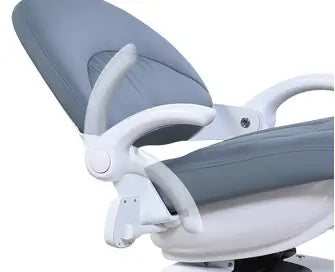

Swing-up and swing-down aluminum armrests create a more open path for patient entry and exit while providing lateral support when the patient is seated. The chair is upholstered in ADS fiber leather and is available in multiple colors to coordinate with the treatment room.

With a published maximum patient load of 550 pounds, the AJ15 provides a higher-capacity option for practices serving a broad patient population. Patient weight should remain properly centered and the chair should always be operated according to ADS installation and operating requirements.

• Swing-up and swing-down aluminum armrests
• Upgraded fiber-leather upholstery
• Multiple ADS upholstery color options
• Published maximum patient load of 550 pounds

Construction and Stability

The AJ15 is built around a cast-iron chair frame with a steel backrest stand and steel base plate. This construction provides a stable foundation for the chair’s hydraulic movement and rotating seat assembly. The chair itself weighs approximately 364 pounds and must be installed on a floor suitable for the chair, patient, and any attached equipment.

• Cast-iron chair frame
• Steel backrest stand
• Steel base plate
• Approximate chair weight: 364 pounds
• Japanese hydraulic pump referenced in ADS product literature

Technical Overview

• Model: AJ15
• Part number: A091502
• Chair type: Hydraulic dental patient chair
• Programmable positions: Three
• Seat rotation: 60 degrees total
• Headrest: Double-articulating
• Backrest: Narrow butterfly-style backrest
• Controls: Armrest touchpad and foot control
• Chair weight: Approximately 364 pounds
• Maximum patient load: 550 pounds
• Electrical requirement: AC 110V ±22V, 50/60 Hz
• Hydraulic duty cycle: Two minutes on, 18 minutes off

Is the ADS AJ15 Right for Your Practice?

The AJ15 is a strong option for general operatories, replacement-chair projects, and practices that prioritize close clinical access and a high published patient capacity. Its narrow backrest favors doctor and assistant access, distinguishing it from the wider-back AJ16.

Upholstery color, attached equipment, delivery-system compatibility, electrical requirements, freight, and installation must be confirmed before ordering. Contact Supply Doc for help reviewing the chair configuration and planning installation for your treatment room.
